4 inch AC/DC hybrid solar submersible pump with S/S impeller High lift, high quality solar pump factory direct sales

4 inch AC/DC hybrid solar submersible pump with S/S impeller High lift, high quality solar pump factory direct sales
4 inch AC/DC hybrid solar submersible pump with S/S impeller High lift, high quality solar pump factory direct sales4 inch AC/DC hybrid solar submersible pump with S/S impeller High lift, high quality solar pump factory direct sales4 inch AC/DC hybrid solar submersible pump with S/S impeller High lift, high quality solar pump factory direct sales4 inch AC/DC hybrid solar submersible pump with S/S impeller High lift, high quality solar pump factory direct sales
group name
AC/DC SOLAR SUBMERSIBLE PUMP
Min Order
1 piece
brand name
DIFFUL
model
4DSC-A/D
Nearest port for product export
NINGBO, SHANGHAI
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update time
Thu, 30 Jan 2025 22:53:55 GMT
contact supplier

Paramtents

  • Type AC/DC solar pump with plastic impeller

  • Pump Body Material Stainless steel

  • Outlet Material Brass

  • impeller Material Plastic

  • Package type wooden case

  • Warranty 2 years

  • Certificate CE, GS, RoHS

Packging & Delivery

  • Min Order1 piece

Briefing

AC/DC brushless solar submersible pump with S/S impeller High lift for deep wells. Cost-effective solar pump.

Detailed

INTRODUCTION
PRODUCT PACKAGING
WIRING INSTRUCTIONS

4 INCH AC/DC SOLAR PUMP WITH S/S IMPELLER

4" S/S IMPELLER SOLAR PUMP
Model Power(W) Voltage(V) Max flow(m3/h) Max head(m) Outlet(inch)
4DSC3.5-105-72-750-A/D 750 72 5.2 105 1.25"
4DSC3.5-140-110-1100-A/D 750 110 5.2 67 1.25"
4DSC4.8-203-110-1500-A/D 750 110 5.2 67 1.25"
4DSC6-67-110-750-A/D 750 110 6 67 1.25"
4DSC4.8-203-200-1500-A/D 1500 200 4.8 203 1.25"
4DSC6-101-110-1100-A/D 1100 150 5.2 101 1.25"
4DSC6-146-110-1300-A/D 1500 200 5.2 146 1.25"
4DSC9.5-50-72-750-A/D 1300 150 7.5 80 1.25"
4DSC9.5-75-110-1100-A/D 1500 200 7.5 100 1.25"
4DSC9.5-90-110-1500-A/D 1500 200 11 60 2"
4DSC15-45-72-750-A/D 1500 200 19 35 2"
4DSC15-55-110-1100-A/D 1500 200 25 26 2"
4DSC16-70-110-1500-A/D 2200 300 5.2 255 1.25"
4DSC20-48-110-1500-A/D 2200 300 7.5 150 1.25"
4DSC25-26-110-1500-A/D 2200 300 11 120 2"
4DSC6-255-200-2200-A/D 2200 300 19 60 2"
4DSC6-300-245-3000-A/D 2200 300 30 36 2"
4DSC6-360-300-4000-A/D 2200 300 30 36 2"
4DSC9.5-136-200-2200-A/D 2200 300 30 36 2"
4DSC9.5-220-245-3000-A/D 2200 300 30 36 2"
4DSC9.5-275-300-4000-A/D 2200 300 30 36 2"
4DSC18-95-200-2200-A/D 2200 300 30 36 2"
4DSC18-137-245-3000-A/D 2200 300 30 36 2"
4DSC18-168-300-4000-A/D 2200 300 30 36 2"
4DSC20-70-200-2200-A/D 2200 300 30 36 2"
4DSC20-82-245-3000-A/D 2200 300 30 36 2"
4DSC22-115-300-4000-A/D 2200 300 30 36 2"
4DSC30-36-200-2200-A/D 2200 300 30 36 2"
4DSC30-52-245-3000-A/D 2200 300 30 36 2"
4DSC30-74-245-3000-A/D 2200 300 30 36 2"

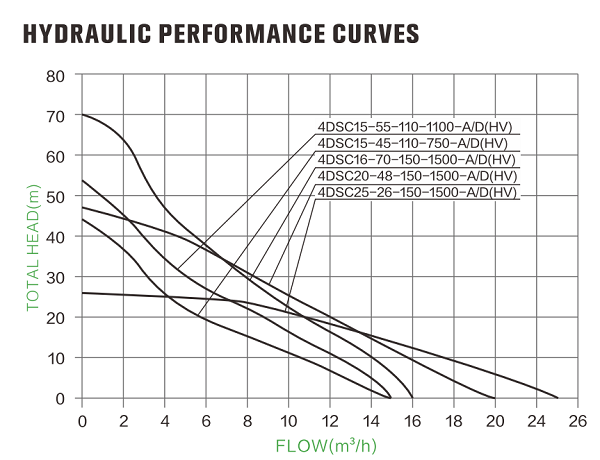

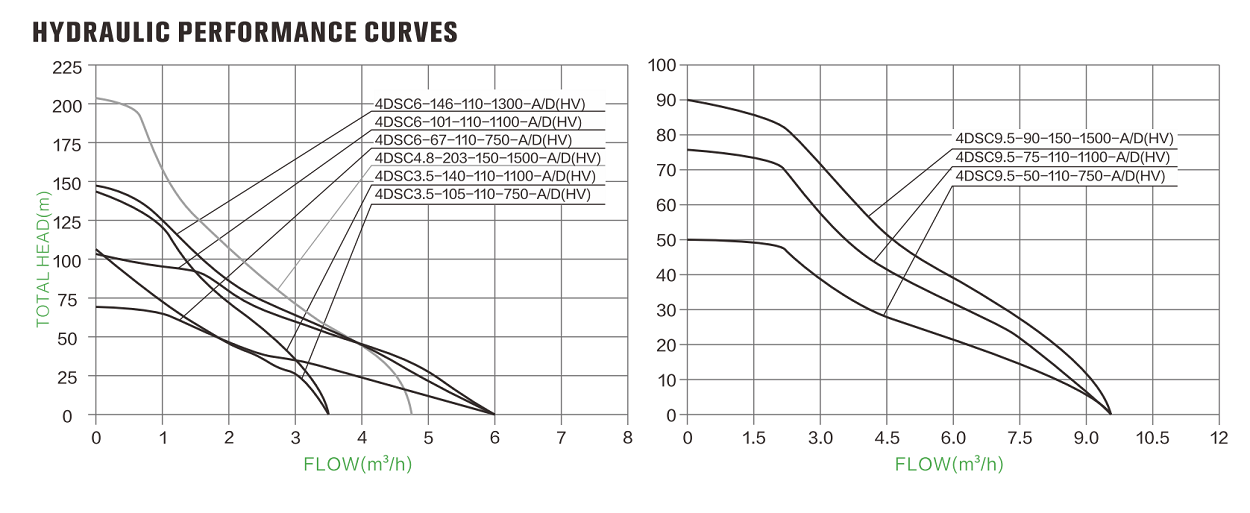

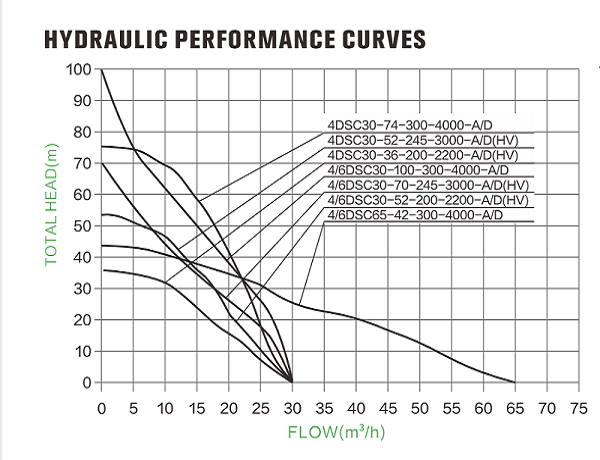

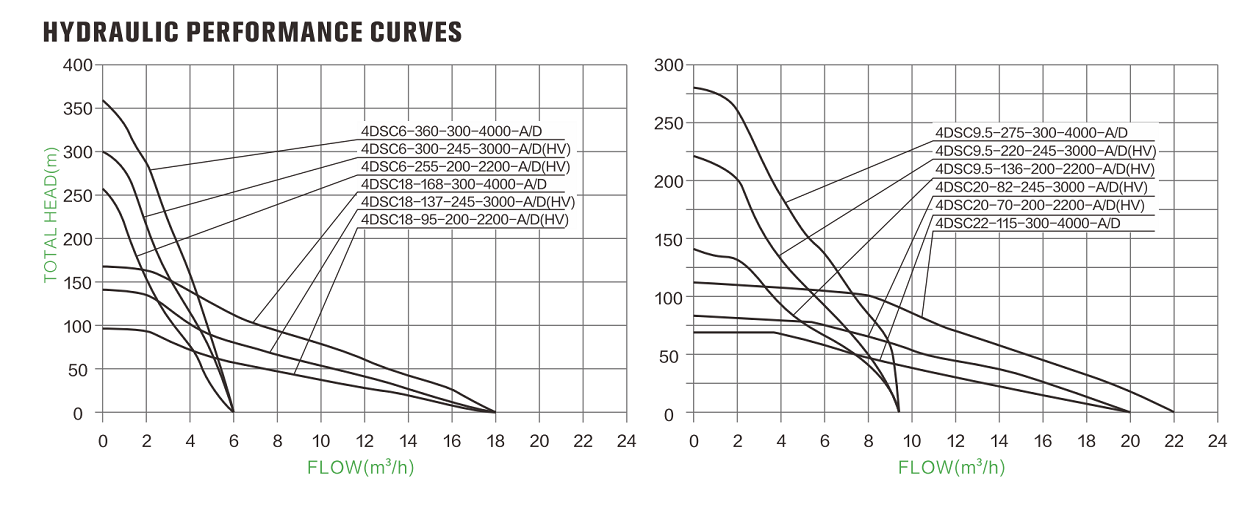

4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER



4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER
4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER
4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER

HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according todifferent folw and prices.

How to calculate water pump head

PRODUCT PACKAGING


What we get for you: (Package Include)

  • - 1 x 4inch AC/DC solar S/S impeller pump with one 2m cable

  • - 1 x AC/DC Pump controler with MPPT function

  • - 1 x Stainless steel float swith (sensor for tank)

  • - 1 x Pump outlet joint connector

  • - 1 x Splice kit for cable join

  • - 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

  • - Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

  • - Poly pipe from pump to water tank. ( recommend 1.25/2inch or over diameter poly pipe)

  • - Wire power cable (3 wires plus earth). we recommend cable size at least same than the original cable in the pump.

CONTROLLER INTERNAL WIRING DIAGRAM

controller internal wiring

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DSC5.2-67-110-750-A/D model matches the solar panel voltage between 120V～420V.

  • 4DSC3.5-105-72-750-A/D

    4DSC5.2-67-110-750-A/D PUMP SOLAR PANEL

  • 4DSC3.5-140-110-1100-A/D

    4DSC4.8-203-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC4.8-203-110-1500-A/D

    4DSC5.2-101-150-1100-A/D PUMP SOLAR PANEL

  • 4DSC6-67-110-750-A/D

    4DPC5.2-146-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC4.8-203-200-1500-A/D

    4DPC7.5-80-150-1300-A/D PUMP SOLAR PANEL

  • 4DSC6-101-110-1100-A/D

    4DSC7.5-100-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC6-146-110-1300-A/D

    4DSC11-60-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC9.5-50-72-750-A/D

    4DSC19-35-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC9.5-75-110-1100-A/D

    4DSC25-26-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC9.5-90-110-1500-A/D

    4DSC5.2-255-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC15-45-72-750-A/D

    4DSC7.5-150-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC16-70-110-1500-A/D

    4DSC11-120-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC20-48-110-1500-A/D

    4DSC19-60-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC25-26-110-1500-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC6-255-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC6-300-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC6-360-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC9.5-136-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC9.5-220-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC9.5-275-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC18-95-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC18-137-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC18-168-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC20-70-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC20-82-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC22-115-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC30-36-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC30-52-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC30-74-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL
