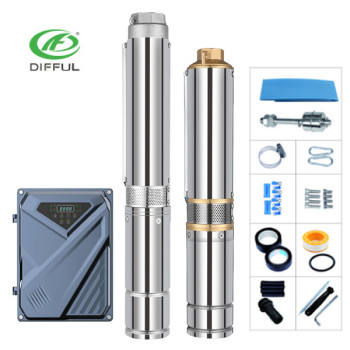

4"AC/DC brushless solar pump with plastic impeller(3KW-4KW), 2 designs for option, DIFFUL solar pump manufacturers, water pump supplier, solar pump factory
- group name
- AC/DC SOLAR SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- 4DPC-A/D
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Thu, 21 Nov 2024 16:46:52 GMT
Paramtents
Type AC/DC solar pump with plastic impeller
Pump Body Material Stainless steel
Outlet Material Stainless steel/Brass
impeller Material Plastic
Package type wooden case
Warranty 2 years
Certificate CE, GS, RoHS
Packging & Delivery
-
Min Order1 piece
Briefing
AC/DC brushless solar submersible pump with Plastic impeller 4 inch solar pump for agriculture purpose, Factory direct sales.
Detailed
-
4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
PLASTIC IMPELLER : High cost performance, popular in South-east Asia and Africa
MAX FLOW RANGE : 7-41m3/h
MAX HEAD RANGE : 52-300m
4 INCH AC/DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER
| 4" AC/DC BRUSHLESS PLASTIC IMPELLER SOLAR PUMP | |||||
|---|---|---|---|---|---|
| Model | Power(W) | Voltage(V) | Max flow(m3/h) | Max head(m) | Outlet(inch) |
| 4DPC7-230-380/520-3000-A/D | 3000 | AC380/DC520 | 7 | 230 | 1.25" |
| 4DPC7-300-380/520-4000-A/D | 4000 | AC380/DC520 | 7 | 300 | 1.25" |
| 4DPC9.5-195-380/520-3000-A/D | 3000 | AC380/DC520 | 9.5 | 195 | 2" |
| 4DPC9.5-250-380/520-4000-A/D | 4000 | AC380/DC520 | 9.5 | 250 | 2" |
| 4DPC12-213-380/520-4000-A/D | 4000 | AC380/DC520 | 12 | 213 | 2" |
| 4DPC14-150-380/520-3000-A/D |
3000 | AC380/DC520 | 14 | 150 | 2" |
| 4DPC14-190-380/520-4000-A/D |
4000 | AC380/DC520 | 14 | 190 | 2" |
| 4DPC18-112-380/520-3000-A/D | 3000 | AC380/DC520 | 18 | 112 | 2" |
| 4DPC18-140-380/520-4000-A/D | 4000 | AC380/DC520 | 18 | 140 | 2" |
| 4DPC22-78-380/520-3000-A/D | 3000 | AC380/DC520 | 22 | 78 | 2" |
| 4DPC22-98-380/520-4000-A/D | 4000 | AC380/DC520 | 22 | 98 | 2" |
| 4DPC30-70-380/520-4000-A/D | 4000 | AC380/DC520 | 30 | 70 | 2" |
| 4DPC41-52-380/520-3000-A/D | 3000 | AC380/DC520 | 41 | 52 | 3" |
| 4DPC41-60-380/520-4000-A/D | 4000 | AC380/DC520 | 41 | 60 | 3" |
4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
-
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
-
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
