4"AC/DC brushless solar pump with plastic impeller(5.5KW-7.5KW), 2 designs for option, DIFFUL solar pump manufacturers, water pump supplier, solar pump factory
- group name
- AC/DC SOLAR SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- 4DPC-A/D
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Sat, 18 Jan 2025 12:49:55 GMT
Paramtents
Type AC/DC solar pump with plastic impeller
Pump Body Material Stainless steel
Outlet Material Stainless steel/Brass
impeller Material Plastic
Package type wooden case
Warranty 2 years
Certificate CE, GS, RoHS
Packging & Delivery
-
Min Order1 piece
Briefing

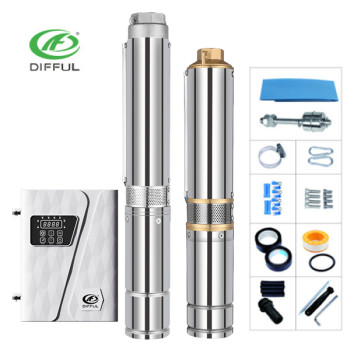

AC/DC brushless solar submersible pump with Plastic impeller 4 inch solar pump for agriculture purpose, Factory direct sales.Permanent magnet DC brushless synchronous motor, Japanese brand NSK bearing, Double bearing structure, Silicon carbide to impregnated graphite mechanical seal, 40SH aluminum iron boron magnet.
Detailed
4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
PLASTIC IMPELLER : High cost performance, popular in South-east Asia and Africa
MAX FLOW RANGE : 7-41m3/h
MAX HEAD RANGE : 82-440m
4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
4 INCH AC/DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER
| 4" AC/DC BRUSHLESS PLASTIC IMPELLER SOLAR PUMP | |||||
|---|---|---|---|---|---|
| Model | Power(W) | Voltage(V) | Max flow(m3/h) | Max head(m) | Outlet(inch) |
| 4DPC7-355-390/520-5500-A/D | 5500 | AC380/DC520 | 7 | 355 | 1.25" |
| 4DPC7-440-390/520-7500-A/D | 7500 | AC380/DC520 | 7 | 440 | 1.25" |
| 4DPC9.5-325-390/520-5500-A/D | 5500 | AC380/DC520 | 9.5 | 325 | 2" |
| 4DPC9.5-420-390/520-7500-A/D | 7500 | AC380/DC520 | 9.5 | 420 | 2" |
| 4DPC12-265-390/520-5500-A/D | 5500 | AC380/DC520 | 12 | 265 | 2" |
| 4DPC12-315-390/520-7500-A/D |
7500 | AC380/DC520 | 12 | 315 | 2" |
| 4DPC14-240-390/520-5500-A/D |
5500 | AC380/DC520 | 14 | 240 | 2" |
| 4DPC14-270-390/520-7500-A/D | 7500 | AC380/DC520 | 14 | 270 | 2" |
| 4DPC18-175-390/520-5500-A/D | 5500 | AC380/DC520 | 18 | 175 | 2" |
| 4DPC18-220-390/520-7500-A/D | 7500 | AC380/DC520 | 18 | 220 | 2" |
| 4DPC22-135-390/520-5500-A/D | 5500 | AC380/DC520 | 22 | 135 | 2" |
| 4DPC22-170-390/520-7500-A/D | 7500 | AC380/DC520 | 22 | 170 | 2" |
| 4DPC30-80-390/520-5500-A/D | 5500 | AC380/DC520 | 30 | 80 | 2" |
| 4DPC30-90-390/520-7500-A/D | 7500 | AC380/DC520 | 30 | 90 | 2" |
| 4DPC41-82-390/520-5500-A/D | 5500 | AC380/DC520 | 41 | 82 | 3" |
| 4DPC41-102-390/520-7500-A/D | 7500 | AC380/DC520 | 41 | 102 | 3" |
4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
-
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
-
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
