Large flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer，agricultural irrigation
- group name
- HIGH VOLTAGE SOLAR SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- DQD-HV
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Sat, 24 May 2025 03:21:37 GMT
Paramtents
Type solar submersible pump
Pump Body Material aluminum
Package type wooden case
Warranty 2 years
Certificate CE, GS, RoHS
Packging & Delivery
-
Min Order1 piece
Briefing

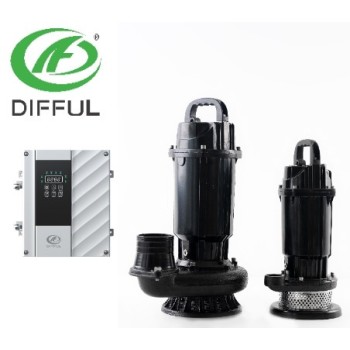

HV Permanent Magnetic Brushless Solar Submersible Pump Wide voltage range High Flow Agricultural Irrigation
Detailed
HV HIGH FLOW SOLAR SUBMERSIBLE PUMP
| ITEM | Voltage | Optimum input voltage（DC） | Power | Max.Flow | Max.Head | Outlet | Cable |
| DQD7-26-110-750-HV | 110V | 110V-350V | 750W | 7m³/h | 26m | 1'' | 5m |
| DQD12-30-110-1100-HV | 110V | 110V-350V | 1100W | 12m³/h | 30m | 1.5'' | 5m |
| DQD25-25-110-1100-HV | 110V | 110V-350V | 1100W | 25m³/h | 25m | 2'' | 5m |
DQD30-28-110-1500-HV | 110V | 110V-350V | 1500W | 30m³/h | 28m | 2'' | 5m |
DQD35-20-110-1500-HV | 110V | 110V-350V | 1500W | 35m³/h | 20m | 2.5'' | 5m |
DQD50-10-110-1500-HV | 110V | 110V-350V | 1500W | 50m³/h | 10m | 3'' | 5m |
HV HIGH FLOW SOLAR SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
