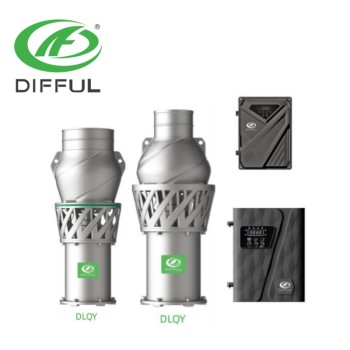

AC/DC large flow oil-immersed submersible pump with centrifugal impeller
- group name
- AC/DC SOLAR SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- DLQY-A/D
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Sat, 24 May 2025 02:03:34 GMT
Paramtents
Type AC/DC oil-immersed pump with centrifugal impeller
Pump Body Material Stainless steel
Outlet Material Stainless steel
impeller Material Stainless steel
Package type wooden case
Warranty 2 years
Certificate CE
Packging & Delivery
-
Min Order1 piece
Briefing
AC/DC high flow oil-immersed submersible pump with centrifugal impeller, agricultural irrigation, flood control and drought relief, aquaculture, industrial construction
Detailed
AC/DC OIL-SUBMERSIBLE PUMP WITH CENTRIFUGAL IMPELLER
ITEM | Rated flow(m³/h) | Rated head(m) | Max.flow(m³/h) | Max.head(m) | AC voltage(V) | Optimum DC voltage (V) | Open circuit voltage (VOC) | Power (kw) | Outlet (inch) | Cable (m) |
| DLQY40-21-4-A/D | 40 | 21 | 95 | 26 | 380 | 520-750 | <780 | 4 | 100 | 12 |
| DLQY50-22-5.5-A/D | 50 | 22 | 100 | 30 | 380 | 520-750 | <780 | 5.5 | 100 | 12 |
| DLQY100-16-7.5-A/D | 100 | 16 | 237 | 22 | 380 | 520-750 | <780 | 7.5 | 150 | 12 |
| DLQY70-14-4-A/D | 70 | 14 | 95 | 26 | 380 | 520-750 | <780 | 4 | 100 | 12 |
DLQY80-15-5.5-A/D | 80 | 15 | 100 | 30 | 380 | 520-750 | <780 | 5.5 | 100 | 12 |
DLQY150-12-7.5-A/D | 150 | 12 | 237 | 22 | 380 | 520-750 | <780 | 7.5 | 150 | 12 |
AC/DC CENTRIFUGAL IMPELLER OIL-SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with our product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.
