2Inch DC Brushless Solar Pump | PLASTIC IMPELLER | Efficient ,Reliable And Economical Green Water Solution

2Inch DC Brushless Solar Pump | PLASTIC IMPELLER | Efficient ,Reliable And Economical Green Water Solution
2Inch DC Brushless Solar Pump | PLASTIC IMPELLER | Efficient ,Reliable And Economical Green Water Solution2Inch DC Brushless Solar Pump | PLASTIC IMPELLER | Efficient ,Reliable And Economical Green Water Solution2Inch DC Brushless Solar Pump | PLASTIC IMPELLER | Efficient ,Reliable And Economical Green Water Solution
group name
DIFFUL&WELLUP DC SUBMERSIBLE PUMP
Min Order
1 piece
brand name
DIFFUL
model
2HJPC
Nearest port for product export
NINGBO, SHANGHAI
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update time
Sat, 25 Oct 2025 12:19:22 GMT

Paramtents

  • Material Brass

  • Type Brushless Solar Pump

  • Warranty 2 year

  • MOQ 1set

  • Model 2HJPC-DC Series

  • Certificate CE, ISO9001

Packging & Delivery

  • Min Order1 piece

Briefing

The Feature Of Pumps:Only support external controller
Applications for:Gardening irrigation,household water supply or fountains

Detailed

2"DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER

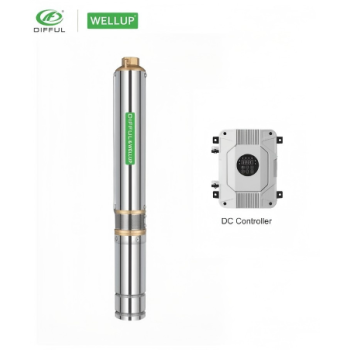

2"DC brushless solar pump - plastic impeller, MPPT controller, brushless motor. Better use for household water supply
Features: large flow and higher head , 304 stainless steel impeller, corrosion resistant;
Hot selling market: Africa (seaside countries), America, Australia, island countries, etc.
2"DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER TECHNICAL DATA
ITEM
Voltage
Optimum input voltage(DC)
Power
Max.Flow
Max. Head
Outlet
Cable
Open circuit voltage(VOC)
VOC(-IN Model)
2HJPC1.5-35-24-200
24V
30V-48V
200W
1.5m³/h
35m
0.75"
2m
<60V
<60V
2HJPC1.7-45-24-300
24V
30V-48V
300W
1.7m³/h
45m
0.75"
2m
<60V
<60V
2HJPC1.7-64-48-400
48V
60V-90V
400W
1.7m³/h
64m
0.75"
2m
<60V
<60V
2"DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER Parameter
ADVANTAGE OF DC SOLAR PUMP
- Permanent magnet DC brushless synchronous motor : The efficiency is increased by 15%-20%, saving energy consumption .

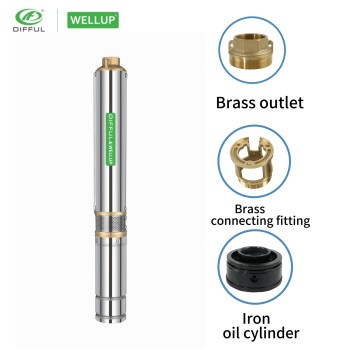

- Brass / Stainless steel outlet / connector , with better corrosion resistance .
-  C & U bearing , longer working life .
-  Silicon carbide - impregnated graphite mechanical seal , long service life and reliable operation .
- 180℃ high temperature resistant copper wire , insulation class F.
-  Cold rolled 600 silicon steel sheet stator and rotor.
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.

2Inch DC Brushless Solar Pump

CONTROLLER INTERNAL WIRING DIAGRAM

HOW TO CHOOSE SOLAR PANEL

2HJPC1.5-35-24-200

solar water pump panel
2HJPC1.7-45-24-300

solar panel
2HJPC1.7-64-48-400

solar panel
