4"DC BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM SOLAR PUMP| DC Hot-sale pump for household water supply
- group name
- DIFFUL&WELLUP DC SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- 4HJSC
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Tue, 04 Nov 2025 03:17:49 GMT
Paramtents
Material Stainless Steel
Type Brushless Solar Pump
Warranty 4HJSC-2 year;4HJSC -IN 1-year
MOQ 1set
Certificate CE, ISO9001
Packging & Delivery
-
Min Order1 piece
Briefing
4"DC brushless solar pump with S/S impeller
stainless impeller, MPPT controller, brushless motor.
High-resistance material.
stainless impeller, MPPT controller, brushless motor.
High-resistance material.
Detailed

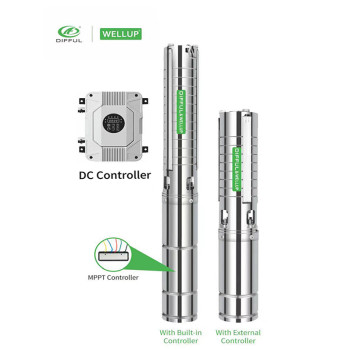

4"DC BRUSHLESS SOLAR PUMP WITH S/S IMPELLER
4"DC brushless solar pump with S/S impeller - stainless impeller, MPPT controller, brushless motor.
Good for farm livestock ,off-grid household water supply and agricultural irrigation.
3"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
| 4HJSC3.5-50-48-400 | -IN | 48V | 60V-90V | 400W | 3.5m³/h | 50m | 1.25" | 2m | <120V | <105V |
4HJSC3.5-86-48-600 | 48 | 60V-90V | 600W | 3.5m³/h | 86m | 1.25" | 2m | <120V | <105V | |
4HJSC3.5-86-72-600 | 72V | 90V-120V | 600W | 3.5m³/h | 86m | 1.25" | 2m | <170V | <155V | |
4HJSC3.5-105-48-750 | 48 | 60V-90V | 750W | 3.5m³/h | 105m | 1.25" | 2m | <120V | <105V | |
4HJSC3.5-105-72-750 | 72 | 90V-120V | 750W | 3.5m³/h | 105m | 1.25" | 2m | <170V | <155V | |
4HJSC3.5-140-72-1100 | 72 | 90V-120V | 1100W | 3.5m³/h | 140m | 1.25" | 2m | <170V | <155V | |
4HJSC3.5-140-110-1100 | 110 | 110V-150V | 1100W | 3.5m³/h | 140m | 1.25" | 2m | <220V | <205V | |
4HJSC4.8-203-110-1500 | 110 | 110V-150V | 1500W | 4.8m³/h | 203m | 1.25" | 2m | <220V | <205V | |
4HJSC6-45-48-500 | 48 | 60V-90V | 500W | 6m³/h | 45m | 1.25" | 2m | <120V | <105V | |
| 4HJSC6-67-48-750 | 48 | 60V-90V | 750W | 6m³/h | 67m | 1.25" | 2m | <120V | <105V | |
| 4HJSC6-67-72-750 | 72 | 90V-120V | 750W | 6m³/h | 67m | 1.25" | 2m | <170V | <155V | |
4HJSC6-101-72-1100 | 72 | 90V-120V | 1100W | 6m³/h | 101m | 1.25" | 2m | <170V | <155V | |
4HJSC6-101-110-1100 | 110 | 110V-150V | 1100W | 6m³/h | 101m | 1.25" | 2m | <220V | <205V | |
4HJSC6-146-110-1300 | 110 | 110V-150V | 1300W | 6m³/h | 146m | 1.25" | 2m | <220V | <205V | |
4HJSC9.5-50-72-750 | 72V | 90V-120V | 750W | 9.5m³/h | 50m | 2" | 2m | <170V | <155V | |
4HJSC9.5-50-110-750 | 110V | 110V-150V | 750W | 9.5m³/h | 50m | 2" | 2m | <220V | <205V | |
4HJSC9.5-75-110-1100 | 110V | 110V-150V | 1100W | 9.5m³/h | 75m | 2" | 2m | <220V | <205V | |
4HJSC9.5-90-110-1500 | 110V | 110V-150V | 1500W | 9.5m³/h | 90m | 2" | 2m | <220V | <205V | |
4HJSC15-45-72-750 | 72V | 90V-120V | 750W | 15m³/h | 45m | 2" | 2m | <170V | <155V | |
4HJSC15-45-110-750 | 110V | 110V-150V | 750W | 15m³/h | 45m | 2" | 2m | <220V | <205V | |
4HJSC15-55-110-1100 | 110V | 110V-150V | 1100W | 15m³/h | 55m | 2" | 2m | <220V | <205V | |
4HJSC16-70-110-1500 | 110V | 110V-150V | 1500W | 16m³/h | 70m | 2" | 2m | <220V | <205V | |
4HJSC2048-110-1500 | 110V | 110V-150V | 1500W | 20m³/h | 48m | 2" | 2m | <220V | <205V | |
4HJSC25-26-110-1500 | 110V | 110V-150V | 1500W | 25m³/h | 26m | 2" | 2m | <220V | <205V |
4"DC BRUSHLESS SOLAR PUMP WITH S/S IMPELLER Performance Curve
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
