3Inch/4Inch AC/DC&WIDE VOLTAGE BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL ＆WELLUP WATER PUMP |Household Water Supply And Irrigation
- group name
- DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- 4/6HJSC
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Tue, 04 Nov 2025 03:17:49 GMT
Paramtents
Material Stainless Steel
Type Brushless Solar Pump
Warranty 3/4HJSS-A/D(HV) 2-year ; 3/4HJSS-A/D-IN1-year
MOQ 1set
Packging & Delivery
-
Min Order1 piece
Briefing
3inch4inch AC/DC&wide voltage brushless screw solar pump
The Max head:150m
The Max flow:2m³/h
The Max head:150m
The Max flow:2m³/h
Detailed

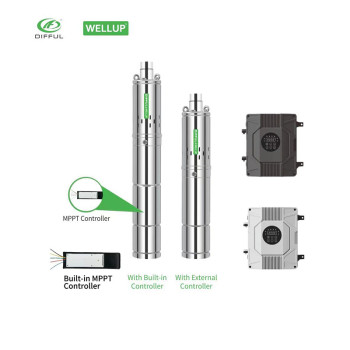

3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump
3Inch4Inch AC/DC&Wide voltage brushless screw solar pump - stainless impeller, MPPT controller, brushless motor.
Features: 304 stainless steel impeller, corrosion resistant.
Greatly use for farm livestock,Off-grid household water supply, agricultural irrigation.
TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage（AC） | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
| 3HJSS-150-72-750-A/D(HV) | A/D-IN | 85V-280V | 100V-350V | 750W | 2m³/h | 150m | 0.75" | 2m | <450V | <430V |
| 4HJSS3.7-112-72-750-A/D(HV) | 85V-280V | 100V-350V | 750W | 2m³/h | 150m | 1" | 2m | <450V | <430V |
3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump
HYDRAULIC PERFORMANCE CURVE
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
