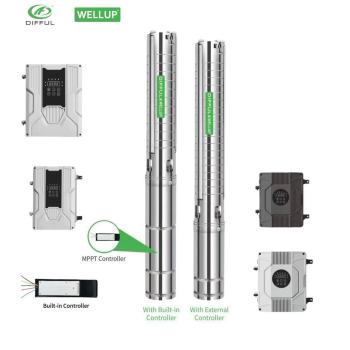

4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM SOLAR PUMP| Irrigation&rid-off water supply
- group name
- DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP
- Min Order
- 1 piece
- brand name
- DIFFUL
- model
- 4HJSC-A/D(HV)
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
- update time
- Tue, 04 Nov 2025 03:17:49 GMT
Paramtents
Material Stainless Steel
Type Brushless Solar Pump
Warranty 4HJSS-A/D(HV)-2 year;4HJSS-A/D(HV) -IN 1-year
MOQ 1set
Certificate CE, ISO9001
Packging & Delivery
-
Min Order1 piece
Briefing
4"AC/DC &Wide voltage brushless solar pump with stainless impeller, MPPT controller, brushless motor.
Brand-new typies of models in 4500RPM series
Brand-new typies of models in 4500RPM series
Detailed
4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER
4"AC/DC &Wide voltage brushless solar pump with S/S impeller - stainless impeller, MPPT controller, brushless motor.
-Farm livestock ,off-grid household water supply and agricultural irrigation.
-Features:stable large flow, wide voltage and high resistance.
-Brand new typies of models and auto-switching controller of 2.2KW-3KW could selected by you in 4500RPM series.
4"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage(AC) | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
4HJSC3.5-105-110-750-A/D(HV) | A/D-IN | 85V-280V(/) | 110V-350V | 750W | 3.5m³/h | 105m | 1.25" | 2m | <450V | <430V |
4HJSC3.5-140-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 3.5m³/h | 140m | 1.25" | 2m | <450V | <430V | |
4HJSC4.8-203-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 4.8m³/h | 203m | 1.25" | 2m | <450V | <430V | |
4HJSC6-67-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 6m³/h | 67m | 1.25" | 2m | <450V | <430V | |
4HJSC6-101-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 6m³/h | 101m | 1.25" | 2m | <450V | <430V | |
4HJSC6-146-110-1300-A/D(HV) | 85V-280V(/) | 110V-350V | 1300W | 6m³/h | 146m | 1.25" | 2m | <450V | <430V | |
4HJSC9.5-50-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 9.5m³/h | 50m | 1.25" | 2m | <450V | <430V | |
| 4HJSC9.5-75-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 9.5m³/h | 75m | 1.25" | 2m | <450V | <430V | |
| 4HJSC9.5-90-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 9.5m³/h | 90m | 1.25" | 2m | <450V | <430V |
| 4HJSC15-45-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 15m³/h | 45m | 2" | 2m | <450V | <430V | |
| 4HJSC15-55-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 15m³/h | 55m | 2" | 2m | <450V | <430V | |
| 4HJSC16-70-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 16m³/h | 70m | 2" | 2m | <450V | <430V | |
| 4HJSC20-48-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 20m³/h | 48m | 2" | 2m | <450V | <430V | |
4HJSC25-26-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 25m³/h | 26m | 2" | 2m | <450V | <430V | |
4HJSC6-255-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 6m³/h | 255m | 1.25" | 2m | <450V | <430V | |
4HJSC6-300-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 6m³/h | 300m | 1.25" | 2m | <450V | <430V | |
4HJSC6-360-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 6m³/h | 360m | 1.25" | 2m | <450V | ||
4HJSC9.5-136-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 9.5m³/h | 136m | 2" | 2m | <450V | <430V | |
4HJSC9.5-220-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 9.5m³/h | 220m | 2" | 2m | <450V | <430V | |
4HJSC9.5-275-300-4000) | 120V-280V | 120V-280V | 4000W | 9.5m³/h | 275m | 2" | 2m | <450V | ||
4HJSC18-95-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 18m³/h | 95m | 2" | 2m | <450V | <430V | |
4HJSC18-137-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 18m³/h | 137m | 2" | 2m | <450V | <430V | |
4HJSC18-168-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 18m³/h | 168m | 2" | 2m | <450V | ||
4HJSC20-70-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 20m³/h | 70m | 2" | 2m | <450V | <430V | |
4HJSC20-82-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 20m³/h | 82m | 2" | 2m | <450V | <430V | |
4HJSC22-115-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 22m³/h | 115m | 2" | 2m | <450V | ||
4HJSC30-36-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 30m³/h | 36m | 2" | 2m | <450V | <430V | |
4HJSC30-52-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 30m³/h | 52m | 2" | 2m | <450V | <430V | |
4HJSC30-74-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 30m³/h | 74m | 2" | 2m | <450V |
4"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER Performance Curve
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
