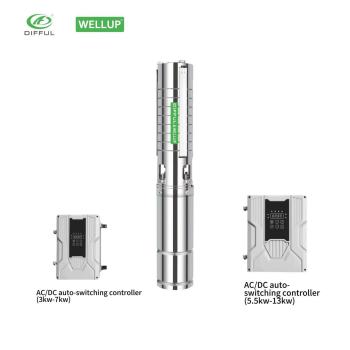

4Inch AC/DC&（3KW-7.5KW） BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL ＆WELLUP WATER PUMP | Hot sales solar water pump

group name: DIFFUL&WELLUP AC/DC SOLAR WELL PUMP

Min Order: 1 piece

brand name: DIFFUL

model: 4HJSC-A/D(HV)

Nearest port for product export: NINGBO, SHANGHAI

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash

update time: Tue, 18 Nov 2025 14:43:50 GMT

contact supplier

Paramtents

type brushless solar water pump
material Stainless steel impeller
Warranty 4HJSC-A/D-2-year
Trademark/Brand DIFFUL

Packging & Delivery

Min Order1 piece

Briefing

4Inch AC/DC Brushless solar pump with stainless steel impeller
The max head range:52m-420m
The max flow range:6m³/h-30m³/h

Detailed

INTRODUCTION

WIRING INSTRUCTIONS

4"AC/DC BRUSHLESS SOLAR WATER PUMP WITH S/S IMPELLER

- 4Inch AC/DC brushless solar water pump - Stainless impeller, MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.

- Features: Cost-effective,large flow and the preferred model for most customers.

- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

4"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Technical Data

Model	Voltage	Optimum input voltage(DC)	Power	Max.Flow	Max Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
4HJSC6-300-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	6m³/h	300m	1.25"	2m	<900V	≥1.3*PUMP POWER
4HJSC6-360-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	6m³/h	360m	1.25"	2m	<900V	≥1.3*PUMP POWER
4HJSC6-420-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	6m³/h	420m	1.25"	2m	<900V	≥1.3*PUMP POWER
4HJSC9.5-220-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	9.5m³/h	220m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC9.5-275-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	9.5m³/h	275m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC10-313-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	10m³/h	313m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC11-339-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	11m³/h	339m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-137-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	18m³/h	137m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-168-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	18m³/h	168m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-200-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	18m³/h	200m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-235-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	18m³/h	235m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC20-82-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	20m³/h	82m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC22-115-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	22m³/h	115m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC22-143-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	22m³/h	143m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC22-169-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	22m³/h	169m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-52-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	30m³/h	52m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-74-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	30m³/h	74m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-96-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	30m³/h	96m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-155-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	30m³/h	155m	2"	2m	<900V	≥1.3*PUMP POWER
