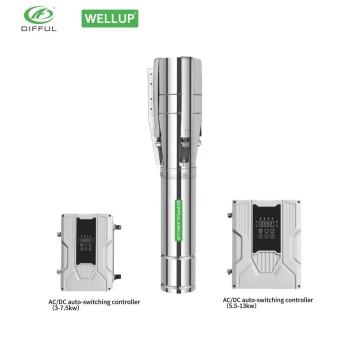

4Inch6Inch AC/DC&(3KW-7.5KW) BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL &WELLUP WATER PUMP | Agricultural irrigation, household water supply

4Inch6Inch AC/DC&(3KW-7.5KW) BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL &WELLUP WATER PUMP | Agricultural irrigation, household water supply
4Inch6Inch AC/DC&(3KW-7.5KW) BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL &WELLUP WATER PUMP | Agricultural irrigation, household water supply4Inch6Inch AC/DC&(3KW-7.5KW) BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL &WELLUP WATER PUMP | Agricultural irrigation, household water supply
group name
DIFFUL&WELLUP AC/DC SOLAR WELL PUMP
Min Order
1 piece
brand name
DIFFUL
model
4/6HJSC-A/D(HV)
Nearest port for product export
NINGBO, SHANGHAI
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update time
Tue, 18 Nov 2025 14:43:50 GMT

Paramtents

  • type brushless solar water pump

  • material Stainless steel impeller

  • Warranty 4/6HJSC-A/D-2-year

  • Trademark/Brand DIFFUL

Packging & Delivery

  • Min Order1 piece

Briefing

4Inch6Inch AC/DC Brushless solar pump with stainless steel impeller
The max head range:42m-145m
The max flow range:30m³/h-95m³/h

Detailed

4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH S/S IMPELLER

- 4Inch6Inch AC/DC brushless solar water pump - plastic impeller, MPPT controller,  brushless motor,aims for farm livestock Off-grid household water supply irrigation.
- Features: Cost-effective,large flow and the preferred model for most customers.
- The max head range:42m-145m
-The max flow range:30m³/h-95m³/h
4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Technical Data

Model

Voltage
Optimum input voltage(DC)
Power
Max.Flow
Max Head
Outlet
Cable
Open circuit voltage     (VOC)
Solar panel   Power
4/6HJSC30-70-380/520-3000-A/D
AC380/DC520V

520V-650V
3000W
30m³/h
70m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC30-100-380/520-4000-A/D
AC380/DC520V

520V-650V
4000W
30m³/h
100m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC30-122-380/520-5500-A/D
AC380/DC520V
520V-650V
5500W
30m³/h
122m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC30-143-380/520-7500-A/D
AC380/DC520V
520V-650V
7500W
30m³/h
143m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC36-56-380/520-3000-A/D
AC380/DC520V
520V-650V
3000W
36m³/h
56m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC36-80-380/520-4000-A/D
AC380/DC520V
520V-650V
4000W
36m³/h
80m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC36-108-380/520-5500-A/D
AC380/DC520V

520V-650V
5500W
36m³/h
108m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC36-145-380/520-7500-A/D
AC380/DC520V

520V-650V
7500W
36m³/h
145m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC46-51-380/520-3000-A/D
AC380/DC520V

520V-650V
3000W
46m³/h
51m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC46-68-380/520-4000-A/D
AC380/DC520V

520V-650V
4000W
46m³/h
68m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC46-86-380/520-5500-A/D
AC380/DC520V
520V-650V
5500W
46m³/h
86m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC46-112-380/520-7500-A/D
AC380/DC520V
520V-650V
7500W
46m³/h
112m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC65-42-380/520-4000-A/D
AC380/DC520V
520V-650V
4000W
42m³/h
42m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC65-63-380/520-5500-A/D
AC380/DC520V
520V-650V
5500W
65m³/h
63m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC65-85-380/520-7500-A/D
AC380/DC520V
520V-650V
7500W
65m³/h
85m
3"
2m
<900V
≥1.3*PUMP POWER
4/6HJSC65-66-380/520-7500-A/D
AC380/DC520V
520V-650V
7500W
65m³/h
66m
4"
2m
<900V
≥1.3*PUMP POWER

4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Hydraulic Performance Curve
4HJPC Hydralic Performance
How to choose a solar pump?
1.Confirm your technical requirements
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requirement with our product
Calculate the "actual lift needed" and find an appropriate pump.
Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.
How to calculate the head?
calculate the head

4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

 AC/DC HYBRID CONTROLLER INTERNAL WIRING DIAGRAM
ACDC controller
AC/DC external controller type
