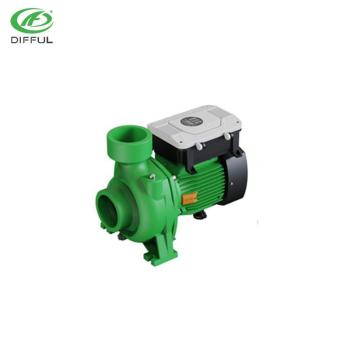

HJCPM AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/BEST SOLAR POWERED WATER PUMP

HJCPM AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/BEST SOLAR POWERED WATER PUMP
HJCPM AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/BEST SOLAR POWERED WATER PUMPHJCPM AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/BEST SOLAR POWERED WATER PUMPHJCPM AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/BEST SOLAR POWERED WATER PUMPHJCPM AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/BEST SOLAR POWERED WATER PUMP
group name
DIFFUL&WELLUP AC/DC SOLAR SURFACE PUMP
Min Order
1 piece
brand name
DIFFUL
model
HJCPM-A/D(HV)
Nearest port for product export
NINGBO, SHANGHAI
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update time
Wed, 03 Dec 2025 23:51:55 GMT

Paramtents

  • Type surface solar centrifugal pump

  • Material cast iron/brass

  • Application domestic water supply,irrigation

  • Voltage 85v-280v

  • Package type wooden case

  • Warranty 1/2 Year

  • Standard or nonstandard Standard

  • Certificate CE, RoHS

Packging & Delivery

  • Min Order1 piece

Briefing

DIFFUL&WELLUP SOLAR SURFACE PUMP

Detailed

4500 RPM DIFFUL&WELLUP WATER PUMP
Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.
Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.
4500RPM SOLAR PUMPWITH BUILT-IN CONTROLLER
A system where the solar-specific controller is integrated within the pump,eliminating the need foradditional purchase and installation of a separate controller.It is simple,convenient,andsignificantly reduces installation difficulty and the probability of errors.
Integrated Design Smart Water Solution
1.All-in-One Design, Easy Installation.
2.Permanent magnet brushless synchronous motor,long working life and high working efficiency.
3.Silicon carbide-impregnated graphite mechanical seal, long service life and reliable operation.
4.180°C high temperature resistant copper wire, insulation class F.
5.Cold rolled 600 silicon steel sheet stator and rotor.
6.MPPT function, the solar power utilization rate is higher.
7.Automatically adjust the speed for operation according to the sunlight power.
8.Over-voltage/undervoltage/over-current/phase loss/short circuit/high temperature protection etc.
DC&AC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP
-MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.
- Features: Cost-effective,large flow and the preferred model for most customers.
- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.
TECHNICAL DATA
ITEM
BUILT-IN CONTROLLER MODEL
VOLTAGE
OPTIMUM INPUT VOLTAGE(DC)
POWER
MAX.FLOW
MAX.HEAD
OUTLET
CABLE
OPEN CIRCUIT VOLTAGE(VOC)
VOC(-IN MODED)
HJCPM21-14-72-750-A/D(HV)
A/D-IN
85V-280V(/)
100V-350V
750W
21m³/h
  14m
2"
0.6m
<450V
   <430V
HJCPM26-15-72-1100-A/D(HV)
85V-280V(/)
100V-350V
1100W
26m³/h
 15m
2"
0.6m
<450V
   <430V
HJCPM27-21-110-1500-A/D(HV)
85V-280V(/)
100V-350V
1500W
27m³/h
 21m
2"
0.6m
<450V
   <430V
HJCPM50-17-110-1500-A/D(HV)
85V-280V(/)
100V-350V
1500W
50m³/h
 17m
3"
0.6m
<450V
   <430V
HJCPM60-20-200-2200-A/D(HV)
85V-280V(/)
200V-350V
2200W
 60m³/h
20m
4"
0.6m
<450V
   <430V
HJCPM85-28-300-3000-A/D(HV)
85V-280V(/)
300V-350V
3000W
85m³/h
28m
5"
0.6m
<450V
   <430V
Hydraulic Performance Curve
How to choose a solar pump?
1.Confirm your technical requirements
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requirement with our product
Calculate the "actual lift needed" and find an appropriate pump.
Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.
How to calculate the head?
 DC&AC/WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP
How to Choose Solar Panel?
HJCPM21-14-72-750-A/D(HV)
HJCPM21-14-72-750-A/D(HV)-IN
HJCPM26-15-72-1100-A/D(HV)
HJCPM26-15-72-1100-A/D(HV)-IN
HJCPM27-21-110-1500-A/D(HV)
HJCPM27-21-110-1500-A/D(HV)-IN
HJCPM50-17-110-1500-A/D(HV)
HJCPM50-17-110-1500-A/D(HV)-IN
HJCPM60-20-200-2200-A/D(HV)
HJCPM60-20-200-2200-A/D(HV)-IN
HJCPM85-28-300-3000-A/D(HV)
HJCPM85-28-300-3000-A/D(HV)-IN
