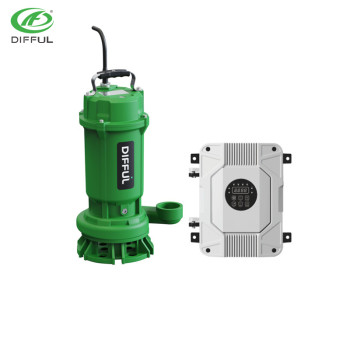

HJWQD AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/SOLAR POWERED WATER PUMPS FOR LIVESTOCK

group name: DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP

Min Order: 1 piece

brand name: DIFFUL

model: HJWQD-A/D(HV)

Nearest port for product export: NINGBO, SHANGHAI

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash

update time: Wed, 03 Dec 2025 23:51:35 GMT

contact supplier

Paramtents

Type surface solar centrifugal pump
Material cast iron/brass
Application domestic water supply,irrigation
Voltage 85V-280V
Package type wooden case
Warranty 1/2 Year
Standard or nonstandard Standard
Certificate CE, RoHS

Packging & Delivery

Min Order1 piece

Briefing

DIFFUL&WELLUP Solar Surface Pump is a high-efficiency.It operates without connection to the power grid, driven directly by solar panels, making it an ideal solution for farmland irrigation, garden watering, livestock water supply, and household water needs.

Detailed

INTRODUCTION

WIRING INSTRUCTIONS

4500 RPM DIFFUL&WELLUP WATER PUMP

Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.

Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP

-MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.

- Features: Cost-effective,large flow and the preferred model for most customers.

- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

TECHNICAL DATA

ITEM	BUILT-IN CONTROLLER MODEL	VOLTAGE	OPTIMUM INPUT VOLTAGE(DC)	POWER	MAX.FLOW	MAX.HEAD	OUTLET	CABLE	OPEN CIRCUIT VOLTAGE(VOC)
HJWQD17-27-110-1100-A/D(HV)	/	85V-280V(/)	100V-350V	1100W	17m³/h	27m	2″	5m	<450V
HJWQD20-30-110-1500-A/D(HV)		85V-280V(/)	100V-350V	1500w	20	30	2″	5m	<450V
HJWQD35-10-110-750-A/D(HV)		85V-280V(/)	100V-350V	750W	35	10	3″	5m	<450V
HJWQD40-10-110-1100-A/D(HV)		85V-280V(/)	100V-350V	1100W	40	10	3″	5m	<450V
HJWQD45-17-110-1500-A/D(HV)		85V-280V(/)	100V-350V	1500w	45	17	3″	5m	<450V
HJWQD50-10-110-1500-A/D(HV)		85V-280V(/)	100V-350V	1500w	50	10	3″	5m	<450V
HJWQD80-8-110-1500-A/D(HV)		85V-280V(/)	100V-350V	1500w	80	8	4″	5m	<450V

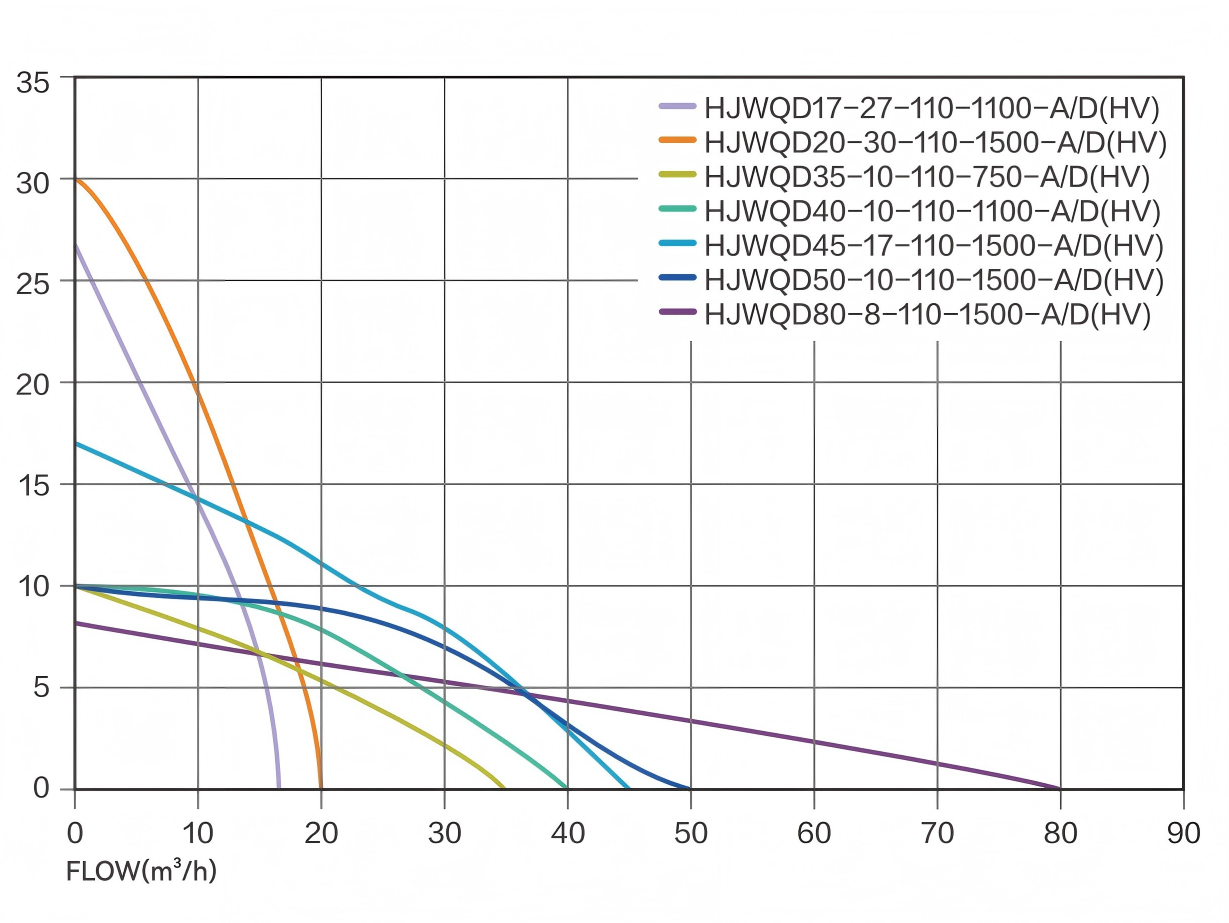

Hydraulic Performance Curve

How to choose a solar pump?

1.Confirm your technical requirements

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

2.Compare your requirement with our product

Calculate the "actual lift needed" and find an appropriate pump.

Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.

How to calculate the head?
